Helium gas purity we provide:
Name |
Specification |
Impurity Content(ppm) |
Carry Out Standard |
Helium (He) |
99.99% |
O2 +Ar≤3,N2 ≤60,CO≤5,CO2 ≤5,CH4 ≤10,H2 O≤30 |
GB/T 7445-1995 |
99.999% |
O2 +Ar≤1,N2 ≤5,CO≤1,CO2 ≤1,CH4 ≤1,H2 O≤3 |
||
99.9999% |
O2 +Ar≤0.2,N2 ≤0.4,CO≤0.1,CO2 ≤0.1,CH4 ≤0.2,H2 O≤1 |
Manufacture and use:
Property: colourless, odourless, non-flammable, non-reactive, inert gas
Helium has a multitude of applications, as a “light gas” that can lift balloons and airships, as a detector gas to detect the smallest of leaks in pipelines and tanks, as an important component in shielding gases for welding, as a carrier gas in residue analysis, in the manufacture of optical glass fibers or as a coolant in space technology and medicine.
Standard we provide
ISO9809, GB5099, DOT-3AA, EN1964, KSB6210, IS7285
Specification:

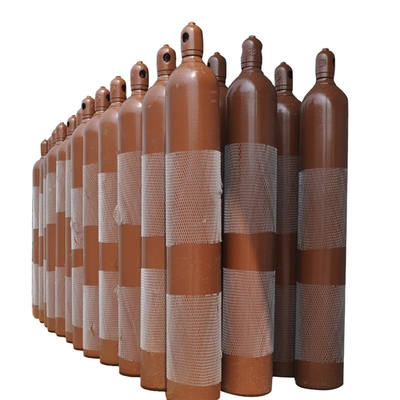

High pressure helium cylinder was designed following Chinese National GB5099 standard and International ISO9809/EN1964 standard for repeatable filling usage,the filling pressure can be up to 200bar with very big volume and high purity(99.9999%).Such cylinders can be recyclable used for around 30 years.With big volume and high purity helium gas,such cylinders are the best choice for various of big celebrations and stage performance.When you habe any inquiries,we have such cylinders from 10L-70L with different volume for your different options.
Standard |
Type |
Working Pressure (Bar) |
Test Pressure (Bar) |
Volum (L) |
Outside Dia. (mm) |
Weight (KG) |
Length (mm) |
Wall Thickness (mm) |
Gas Filling Weight |
Material |
ISO9809 | WMA140-6.7-15 | 150 | 250 | 6.7 | 140 | 11 | 717 | 4.1 | 4kg | 37Mn |
WMA140-10-15 | 10 | 15.1 | 970 | 3.6 | 6kg | |||||
WMA140-13.4-15 | 13.4 | 18.6 | 1220 | 4.1 | 8kg | |||||
WMA159-16-15 | 16 | 159 | 21.5 | 1163 | 4.2 | 9.5kg | ||||
WMA219-20-15 | 20 | 219 | 29.5 | 865 | 5.7 | 12kg | ||||
WMA219-40-15 | 40 | 49.5 | 1465 | 24kg | ||||||
WMA232-47-15 | 47 | 232 | 56 | 1520 | 6.0 | 28kg | ||||
WMA232-50-15 | 50 | 59 | 1600 | 30kg | ||||||
WMA232-47-20 | 200 | 300 | 47 | 232 | 55 | 1520 | 5.8 | 28kg | 34CrMo4 | |
WMA232-50-20 | 50 | 62 | 1600 | 30kg | ||||||
DOT | 206CF | 150 | 250 | 40 | 219 | 50 | 1465 | 5.7 | 24kg | 37Mn |
375CF | 150 | 250 | 68 | 267 | 78 | 1500 | 6.2 | 41kg | 30CrMo |
Our Services:
Our Services: Reply your enquiry in 24 hours working time.
Customized cylinder color, cap type, valve model no. and stampling are accapted.
Every cylinder will be tested before the delivery.
On time delivery and satisfied sales service. Best quality, lowest price, welcome to your inquiry.
Term of Trade:
1. Above price includes CGA580 valve and cap.
2. Packaging: 40L cylinders with Helium gas are nude in container.
3.MSDS & COA are available once request.
4.Payment Term: T/T
5.Delivery Time: within 35days after 30% TT deposit, balance before delivery
6.MOQ: one 20’ container
